Spesifikasi VORTEX 1

Mixer Magnetic

Description

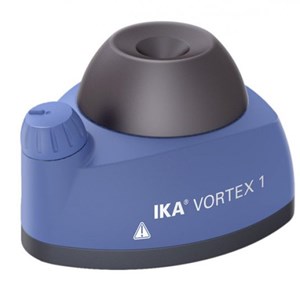

Vortex 1

Vortex Mixer

Attractively designed test tube shaker with touch function. Designed for mixing small test samples.

- Small, compact and reliable

- For small containers up to 30 mm in diameter, e.g. test tubes, centrifuge tubes, Eppendorf beakers

- Infinitely adjustable speed from 1000 – 2800 rpm

- Excellent mixing action

- The upper casing and the test tube surface are made from inert plastic. The bottom section is a coated, zinc die-casting

Technical data:

- Permissible shaking weight (incl. Attachment) : 0.1kg

- Height : 70mm

- Shaker diameter : 4.5mm

- Motor rating output : 0.8W

- Motor rating input : 1.2W

- Weight : 0.55kg

- Power input : 30W

- Depth : 110mm

- Speed min (adjustable) : 1000rpm

- Speed max. : 2800rpm

- Width : 95mm

- Permissible ON time : 100%

- Frequency : 50/60Hz

- Timer display : none

- Working with microtiter plates : no

- Speed display : none

- Shaking table lock : no

- Type of movement : orbital

- Touch function : yes

- Protection class according to DIN EN 60529 : IP 40

- Voltage : 100 - 240V

- Permissible relative humidity : 80%

- Permissible ambient temperature max. : 40°C

- Permissible ambient temperature min. : 5°C

- Timer : no
