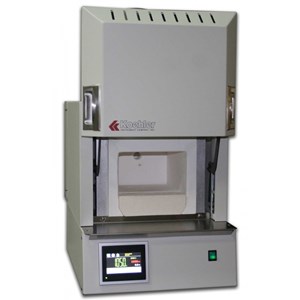

Spesifikasi Programmable Ashing Furnace

Alat Laboratorium Umum

K24410 Programmable ashing furnace ,0.17 cu.ft.(5L) lift gate 115 60 HZ

K224419 Programmable ashing furnace ,0.17 cu.ft.(5L) lift gate 230V 50/60 HZ

K24420  Programmable ashing furnace ,0.17 cu.ft.(15L) lift gate 115 60 HZ

K24429 Programmable ashing furnace ,0.52 cu.ft.(15L) lift gate 230V 50/60 HZ

K24430 Programmable ashing furnace ,1.41 cu.ft.(40L) lift gate 115 60 HZ

K24439 Programmable ashing furnace ,1.41 cu.ft.(40L) lift gate 230V 50/60 HZ

Determines the amount of ash in distillate and residual fuels, gas turbine fuels, crude oils, lubricating oils, waxes, and other petroleum products.

• 6 Complete Air Exchanges per Minute
• Maximum Temperature of 1200°C
• Touch Screen Control Panel
• Double walled housing for low external temperatures and stability

  Conforms to the Specifications of:

  ASTM D482, D874, D1026, D3174, D4422, D5184

  Temperature Range: Ambient to 1200°C

  Temperature Accuracy: ± 1°C

  Temperature Uniformity: ± 3°C

  Temperature Resolution: ± 0.1°C

  Oven Volume:



  0.17 cu. ft. model: 5 L
  0.52 cu. ft. model: 15 L
  1.41 cu. ft. model: 40 L

  Chamber Internal Dimensions (wxdxh,in.(cm)):
  0.17 cu. ft. model: 8x7x5 (20.32x17.78x12.70)
  0.52 cu. ft. model: 9x13x7 (22.86x33.02x17.78)
  1.41 cu. ft. model: 13x19x10 (33.02x48.26x25.40)

  Power:



  0.17 cu. ft. (5L) model: 2700 W
  0.52 cu. ft. (15L) model: 5500 W
  1.41 cu. ft. (40L) model: 11000 W115V, 60Hz, Single Phase
  230V, 50/60Hz, Single Phase

  wxdxh,in.(cm)
  0.17 cu. ft. model: 18x26x22 (45.7x66x55.8)

  0.52 cu. ft. model: 20x29x24 (50.8x73.7x61)

  1.41 cu. ft. model: 24x34x29 (61x86.4x73.7)

  Net Weight:

  0.17 cu. ft. model Net Weight: 88 lb (40 kg)
  0.52 cu. ft. model Net Weight: 132 (60 kg)
  1.41 cu. ft. model Net Weight: 176 (80 kg)

  Shipping Weight: 188 lbs (85.3 kg)

  Dimensions: 48x24x33 in. (121.9x61.0x83.8 cm)

• K24410-1 Steel Collecting Pan, 5L
• K24420-1 Steel Collecting Pan, 15L
• K24430-1 Steel Collecting Pan, 40L
• K24300-1 Evaporation Crucible, Porcelain, 100mL
• K24300-2 Crucible Tong, 300mm
• K24300-3 Gloves, 900°C Max
• K24300-8 Evaporation Crucible, Porcelain, 30mL, pk/6
• K24300-9 Porcelain Lid, for 30mL Crucible, pk/6
