Spesifikasi pH Controller
PH Meter
Description

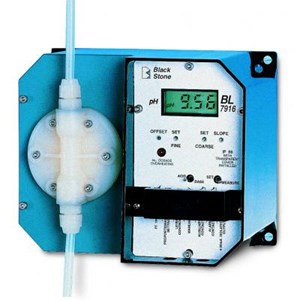

Widely used in plating, wastewater treatment, water treatment and swimming pools, the BL7916 provides convenient installation, ease of use and maximum reliability.
- Easy Installation: Designed with mounting holes built into the base and front-facing controls and pump assemblies
- Proportional Dosing: Slows the stroke rate as the measured value approaches the user selected point, avoiding overdosage
- Rugged Construction: Rugged, fiber-reinforced polypropylene IP55 rated casing; parts with chemical contact made of PVDF, FPM/FKM and PTFE
- Isolated Recorder Output: To enhance troubleshooting and the ability to record data while monitoring the application
- Simple Pump Action: A positive displacement solenoid with few moving parts with no rotating parts, gears or cams to drastically reduce mechanical failures
- Auxiliary Dosing Contacts: Allows the user to attach a mixer or priming pump that is activated only when the pump is dosing
Chemical Dosing Pump Specifications:
- Alarm Relay Set Point: 1 isolated, 2A, max. 240V, resistive load, 1,000,000 strokes
- Dosing Control: proportional, acid or base, user selectable
- Analog Ouput Signal: 4-20 mA (isolated)
- Dosing Terminals: 1 isolated, 2A, max. 240V, resistive load, 1,000,000 strokes
- Over Current Protection: 250V fuse
Specifications
| Display Type | LCD |
| Temperature (Metric) Operating | 0 to 50°C |
| Voltage | 115 |
| Warranty | 1 year |
| Accuracy (pH) | ±0.01 |
| Weight (Metric) | 142mm |
| Dimensions (L x W x H) | 221 x 142 x 181mm (8.7 x 5.6 x 7.1 in.) |
| Range (pH) | 0.00 to 14.00 |
| Includes | 7m (23 ft.) LPDE suction valves, polyethylene discharge tubing, 115V power cable and instructions |
| Power Supply | 115V ±15%; 50/60Hz (40W) |
| Temperature Compensation | Fixed at 25°C (77°F) |
| Product Type | pH meter and chemical dosing pump |
| Range | 0 to 14 |
| pH Range | 0 to 14 |
| Width (Metric) | 5kg |
| Calibration | offset: ±1 pH with trimmer; slope: 85 to 115% with trimmer |
| Resolution (pH) | 0.01 |
| Hertz | 50/60 |
| IP Rating | IP55 |
| Relative Humidity Range | Max 95%, non-condensing |
