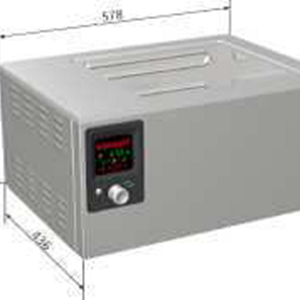

Spesifikasi Oilbath ONE 29

Alat Laboratorium Umum

Standard equipment
Control
·  fuzzy-supported PID microprocessor
controller with integrated autodiagnostic
system with fault indication
·  solid state switching unit
·  2 Pt100 sensors Class A in 4-wire-circuit,
mutually monitoring and taking over the
performance at the same temperature value
·  digital timer from 1 min. up to 999 hours for:
ON (continuous operation),
DELAYED ON,
HOLD or HOLD set-temperature dependent
with guaranteed holding time
·  digital display (LED) of all set parameters,
such as temperature and alarm values (0,1°C
resolution) as well as time values
·  calibration facility on controller
·  audible and visual alarm at programme end
and as input acknowledgement as well as in
case of low liquid level; heating is switched off
automatically
Triple Overtemperature Protection
·  in case of overtemperature due to failure, the
heating is switched off at approx. 10°C above
the set temperature (fixed value)
·  independently working, electronic
overtemperature temperature limiter TWB
protection class 2
·  resolution of display and setting accuracy:
0,1°C below 99,9°C, 1°C above 100°C
·  mechanical temperature limiter TB protection
class 1 switching the heating off at approx.
30°C above max. temperature of the bath
Textured Stainless Steel Casing
·  l x w x h: 818 x 516 x 238 mm
·  material 1.4301 (ASTM 304), corrosion
resistant
Interior - Heating Concept
·  l x w x h: 590 x 350 x 140 mm, 29 l
·  easy-to-clean interior, made of stainless steel,
reinforced by deep drawn ribbing, material no.
1.4301 (ASTM 304), laser-welded
·  corrosion-proof large-area heating on three
sides
Temperature Range
·  min. 5°C above ambient up to +200°C
Voltage / Power Rating
·  230 V (+/- 10 %), 50/60 Hz
·  approx. 2.400 W (during heating)
Packing Data
·  net weight approx. 22 kg
·  gross weight carton approx. 29 kg
·  dimensions approx.:
carton w x h x d: 91 x 61 x 40 cm
·  the appliances must be transported upright
Customs Tariff Number
·  8419 8998
Country of Origin
·  Federal Republic of Germany
WEEE-Reg.-No.
·  DE 66812464
Accessories
·  Flat stainless steel cover with
openings and concentric ring sets (8
openings / 107 mm diameter)
L0
·  Flat stainless steel cover with
openings and concentric ring sets (4
openings / 147 mm diameter)
L2
·  Gable stainless steel cover mounted
for condensate drainage
L1
·  Works calibration certificate (37°C for
WNE, WPE; 160°C for ONE)
Z4
