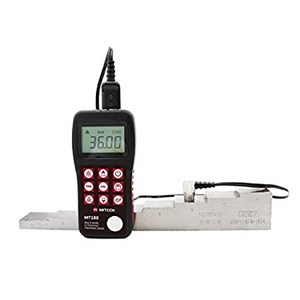

Spesifikasi Mitech MT180

Alat Ukur Ketebalan

Product description

Features:

*Multi-mode: Pulse-Echo mode and Echo-Echo mode.
*Capable of performing measurements on a wide range of material, including metals, plastic,ceramics,composites,epoxies,glass and other ultrasonic wave well-conductive materials
*Probe-Zero function,Sound-Velocity-Calibration function
*Two-Point Calibration function
*Single point mode and Scan mode.Seven measurements readings per second in single point mode, and sixteen per second in Scan Mode
*Auto sleep and auto power off function to conserve battery life

  Specifications:

*Measuring Range:0.65-600mm( P-E),3-30mm (E-E)
*Working Frequency:(2.5-7)MHZ
*Probe Diameter:Standard Probe P5EE is 10mm
*Min. Pipe Diameter:Φ15mm×2.0mm
*Resolution:0.1/0.01mm
*Accuracy:±(0.5%Thickness+0.01)mm
*Display:4.5 digits LCD with EL backlight
*Single /Scan Mode:Seven measurements readings per second in single point mode,and sixteen per second in Scan Mode
*Probe Calibration:Zero Calibration,Two-Point Calibration
*Velocity Range:1000-9999m/s
*Unit:Metric/Imperial selectable
*Memory:up to 20 files (up to 99 values for each file) of stored values
*Communication Port:USB
*Data Printing:Yes
*Power supply:Two AA 1.5 Volt alkaline batteries(NOT included in the package)
*Lower Power Comsumption:Yes
*Working Hours:100h (EL backlight off).
*Operating Temperature:-20℃-+60℃
*Appearance:ABS
*Size:150mm×74mm×32 mm
*Speech Function:NO *PC Datapro Software:NOT include in the package, it is optional accessory. if you need it, please contact us to purchase.
