Spesifikasi MINI GAC

Alat Ukur Kadar Air

Description

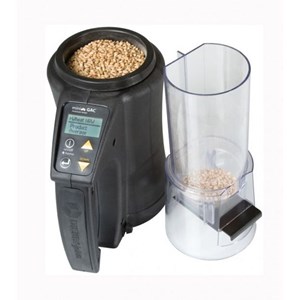

MINI GAC

Handheld Moisture Testers

FEATURES :

- Menu-driven operating system

- Internal scale (no pre-weighing)

- USB compatibility for calibration upgrades

- Over 450 available calibrations

- Automatic Temperature compensation

The Mini GAC measures moisture by capacitance, conductance, internal scale and temperature. The moisture range is 5-45%, depending upon the grain type, and has a grain temperature range of 32 - 122ºF (0-50ºC). The Mini is a whole grain moisture tester and sample size is approximately 1 pint. It has an LCD adjustable contrast display. Complete with 9V battery, funnel assembly, belt clips, instructions and 1 year warranty.

Unit Specifications :

- Measurement method : capacitance, conductance, internal scale, temperature

- Moisture range : 5 - 45 % (depending on grain type)

- Grain temperature : 32 - 122° F (0 - 50° C)

- Temperature difference : 36° F (20° C) instrument to grain sample

- Temperature compensation : automatic

- Grain type : whole grain, no sample preparation

- Sample size : 1 pint (0.47 L)

- Display : LCD (106 x 56 pixels)

- Analyzer height :* 11.9 in (30.2 cm)

- Analyzer width :* 4.8 in (12.2 cm)

- Analyzer depth :* 8.3 in (21.1 cm)

- Weight (total) : 2 lbs 7 oz (1.1 kg)

- Measured parameters : moisture, grain temperature and test weight ** :

- Calibrations : 20 grain calibrations (choose from over 450 calibrations that are available.)

Moisture Measurement Specifications :

- Moisture accuracy : calibrations are based on U.S. federal standard grain calibrations

- Moisture repeatability : 0.2% moisture, depending on grain type, in commercial trade range, typical

- Moisture resolution : 0.1% moisture

Grain Temperature Measurement Specification :

- Accuracy : 1.0° F or 0.5° C

- Temperature resolution : 0.1° F or 0.1° C

Test Weight Specifications** :

- Repeatability : 0.5 lb/bu (0.6 kg/h) in commercial trade range, depending on grain type

- Test weight resolution : 0.1 lb/bu (kg/hl)

Other Specifications :

- Operating temperature : 40 - 113° F (5 - 45° C)

- Humidity : 5 - 95% non-condensing

- Power : 9 VDC battery (installed)
