Operations / Interface

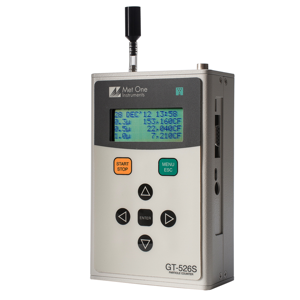

The GT-526S has six programmable particle sizes which the operator can set from 0.3 to 10 microns. The 526S can store up to 8,000 sample events. These history events can be viewed, printed on the optional printer and download to a computer using Comet software or simple ASCII terminal commands. The GT-526S has two programmable count alarm limits. Alarms are indicated by a displayed message and an alarm flag in the data file. Our-526S is battery powered with 24 hours of typical (intermittent) operation or 10 hours of continuous operation from a single charge. Recharge time is approximately 2.5 hours. A temperature / relative humidity plug-and-play sensor option immediately adds ambient temperature and relative humidity data to the displayed and logged data.
Features
- User size selectable
- All 6 channels counted and recorded at one time
- Menu driven command set for out of the box operation
- Bench unit performance in a handheld
- Affordable
Accessories
Supplied:
- Operation Manual
- Comet Software
- AC Adapter / Battery Charger
- Iso-kinetic Sample
- Carrying Case
- Zero Particulate Filter
- NIST Certificate of Calibration
Optional:
- RH & Temperature Probe (P/N G3120)
- Flow Meter (P/N 9801)
- Custom Serial Cable (P/N 3228)
- Portable Printer (P/N G3115)
- Particle View Software (P/N Particle View)
- ISO Cal 21501-4 (P/N 80849)
- Wall / Tripod Mount (P/N 8956-4)
