Operations / Interface

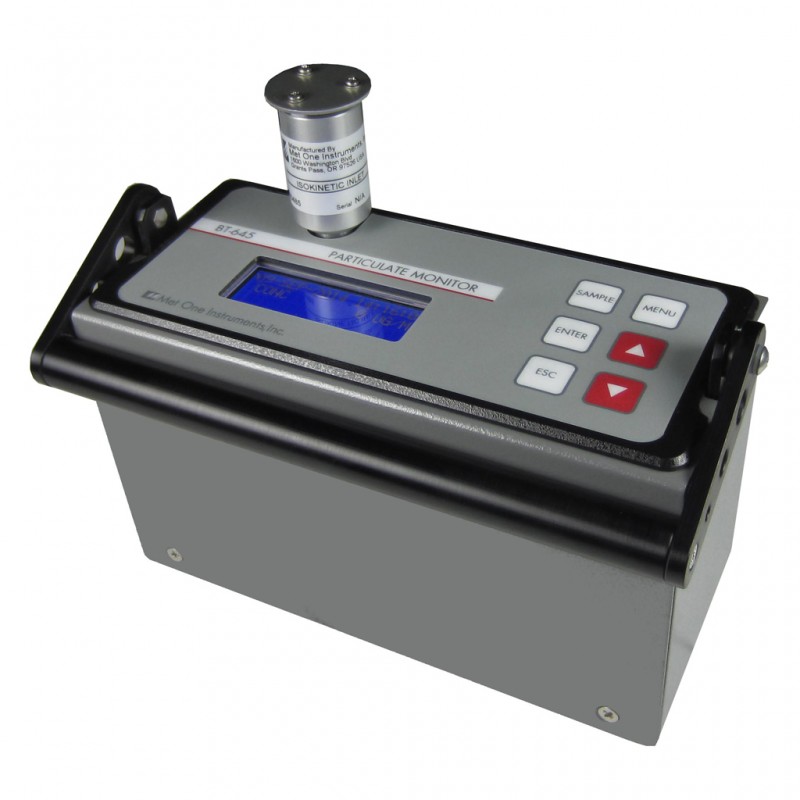

The BT-645 laser optical sensor is used to detect and measure particulate concentrations up to 100 milligrams per cubic meter. The continuous flow optical sensor is combined with purge air to ensure accurate measurements in adverse environments. The internal datalogger will store over 11,000 samples. Sample history events can be viewed on the display or downloaded to a computer using Comet software. The BT-645 internal battery pack provides over 10 hours of continuous operation. Battery recharge time is approximately 2.5 hours. The standard unit is supplied with a TSP inlet. Optional sampling inlets are available for PM1, PM2.5, and PM10
Features
- Four Mass Ranges (PM1, PM2.5, PM10 & TSP)
- Rugged Design
- Real Time Monitoring
- Sample History
- Low Cost w/ Data Logging
- Purge Air System
- 1-Year Warranty
Accessories
Supplied:
User Manual
USB Cable
Communications Software (Comet)
AC Adapter / Battery Charger
NIST Certificate of Calibration
Optional:
PM1 Sharp Cut Cyclone (P/N SCC-111)
PM2.5 Sharp Cut Cyclone (P/N SCC‐112)
PM10 Sharp Cut Cyclone (P/N SCC‐110)
Custom Serial Cable (P/N 3228)
