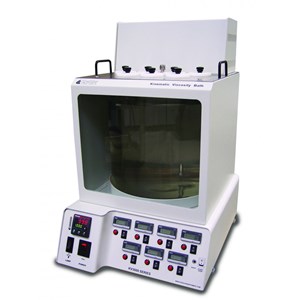

Spesifikasi KV3000 Kinematic Viscosity Bath with Integrated Digital Timing

Alat Laboratorium Umum

K23790 KINEMATIC VISCOCITY BATH 12'',220-240V 50/60 HZ

K23796 KINEMATIC VISCOCITY BATH 18'',220-240V 50/60 HZ

Kinematic viscosity is of primary importance in the design and selection of a wide range of petroleum products. Calibrated capillary viscometers are used to measure flow under gravity or vacuum at precisely controlled temperatures.

•  Microprocessortemperature control between ambient and 150 °C (302 °F)
•  Integrated digital timing for easy measurement of sample efflux times
•  Dual digital displays show setpoint and actual bath temperature
•  Selectable temperature scale - Fahrenheit or Celsius
•  Integrated redundant overtemperature and low liquid level cut-off circuitry
•  Conforms to ASTM D445, D2170 and related specifications

Conforms to the specifications of: ASTM D445, D6074, D6158; IP 71; ISO 3104; DIN 51550; FTM 791-305; NF T 60-100

Temperature Control Range: ambient to 150°C (302°F); sub-ambient to 10°C with external cooling

Display: 0.1°C/0.1°F resolution, calibrate to 0.01°C/0.01°F

Control accuracy and uniformity: Exceeds ASTM requirements throughout the operating range Integrated timing.

Seven individual start/stop timers with displays to 0.1 seconds, accurate to within 0.01%

Communication: RS232, RS485

Viscometer ports: Seven round 2" (51 mm) ports

Bath Medium: Water or suitable heat transfer fluid

Bath Capacity:

12": 5.8 gal (22L)

18": 8.9 gal (33.7L)

115V 60Hz, Single Phase, 12.6A

220-240V 50/60Hz, Single Phase, 7.2A

lxwxh, in. (cm)

12" Bath: 20 1/4 x 15 1/4 x 24 1/2 (51x39x62)

18" Bath: 20 1/4 x 15 1/4 x 30 1/2 (51x39x77)

Net Weight:

12" Bath: 78 lbs (35.5 kg)

18" Bath: 90 lbs (41 kg)

Shipping Weight

12" Bath Depth: 95 lbs (43.1 kg)

18" Bath Depth: 100 lbs (45.4 kg)

Dimensions

12" Bath Depth: 28x24x33 in. (71.12x60.96x83.82 cm)
18" Bath Depth: 28x24x33 in. (71.12x60.96x83.82 cm)

• 378-025-C01 thru 378-700-C01 Cannon®-Fenske Viscometer Tubes, Size 25 thru 700

• 378-025-C02 thru 378-700-C02 Cannon®-Fenske Opaque Reverse Flow Viscometer Tubes, Size 25 thru 700

• 378-000-C03 thru 378-005-C03 Ubbelohde Viscometer Tubes, Size 0 thru 5

• K23700-SFW-A Kinematic Viscosity Software

• K22090 Withdrawal Bulb

• K23311 Rubber Stopper for Viscometer Tube, pk/12

• K23350 Universal Viscometer Holder, Rectangle

• K23351 Universal Viscometer Holder, Round

• K23363 Modified Koppers Viscometer Holder, Round

• K23381 Cannon-Fenske Routine Viscometer Holder, Round

• K23382 Ubbelohde Viscometer Holder, Round

• K23383 Cross-Arm Viscometer Holder, Round

• K23384 Cannon-Ubbelohde Semi-Micro Viscometer Holder, Round

• K23387 BS/IP/RF U-Tube Viscometer Holder, Round

• 355-001-001 White Mineral Oil, 1 Gallon

• 355-001-003 White Mineral Oil, 5 Gallon

• 250-000-120C ASTM 120C Thermometer, 40 °C Test Temperature

• 250-000-121C ASTM 121C Thermometer, 100 °C Test Temperature
