Spesifikasi KV1000 Kinematic Viscosity Bath

Alat Laboratorium Umum

K23376-00000 Kinematic viscosity bath,12'' 115v 60hz

K23377-00000 Kinematic viscosity bath,12'' 220-240 /60hz

K23371--00000 Kinematic viscosity bath,18'' 115v 60hz

K23378-00000 Kinematic viscosity bath,18'' 220-240 /60hz

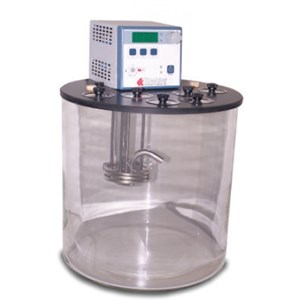

Kinematic viscosity is of primary importance in the design and selection of a wide range of petroleum products. Calibrated capillary viscometers are used to measure flow under gravity or vacuum at precisely controlled temperatures.Kinematic viscosity is of primary importance in the design and selection of a wide range of petroleum products. Calibrated capillary viscometers are used to measure flow under gravity or vacuum at precisely controlled temperatures.Constant temperature bath for kinematic viscosity testing of petroleum products. Accommodates six round 2" (51mm) dia. viscometer holders. Bath temperature stability of ± 0.02 °C as per ASTM requirements. Test temperatures of up to 150°C (302°F) can be selected. Temperature limit control permits the operator to select an overtemperature cutoff point to protect against accidental overheating. Control unit includes immersion heater, circulating stirrer and temperature probe. Composition top plate rests on a 12x12" (30.5x30.5cm) or 12x18" (30.5x46cm) Borosilicate Glass jar. Order capillary viscometers, viscometer holders and thermometer separately.

Conforms to the specifications of: ASTM D445, D6074, D6158; IP 71; ISO 3104; DIN 51550; FTM 791-305; NF T 60-100

Capacity: Six (6) glass capillary viscometers

Bath Medium: water or white technical oil

Bath Depth: 12" (30.5 cm); 18" (46 cm)

Bath Capacity: 5.8 gal (22 L); 8.9 gal (33.7 L)115V 60Hz, Single Phase, 10.2A
220-240V 50/60Hz, Single Phase, 5.3A

Diaxh,in.(cm)

12" Bath Depth: 13 ½ x 20 (34.6x50.8)
18" Bath Depth: 19 ½ x23 (49.5x58.4)

Net Weight
12" Bath Net Weight: 28 lbs (12.7 kg)
18" Bath Net Weight: 33 lbs (15 kg)

Shipping Weight

12" Bath Depth: 34 lbs  (15.4 kg)
18" Bath Depth: 40 lbs  (18.2 kg)

Dimensions

12" Bath Depth: 28x24x20 in. (71.12x60.96x50.8 cm)
18" Bath Depth: 28x24x20 in. (71.12x60.96x50.8 cm)

• 378-025-C01 thru 378-700-C01 Cannon®-Fenske Viscometer Tubes, Size 25 thru 700
• 378-025-C02 thru 378-700-C02 Cannon®-Fenske Opaque Reverse Flow Viscometer Tubes, Size 25 thru 700
• 378-000-C03 thru 378-005-C03 Ubbelohde Viscometer Tubes, Size 0 thru 5
• K23377-01000  Cooling Coil Assembly
• K22090 Withdrawal Bulb
• K23311 Rubber Stopper for Viscometer Tube, pk/12
• K23350 Universal Viscometer Holder, Rectangle
• K23351 Universal Viscometer Holder, Round
• K23363 Modified Koppers Viscometer Holder, Round
• K23381 Cannon-Fenske Routine Viscometer Holder, Round
• K23382 Ubbelohde Viscometer Holder, Round
• K23383 Cross-Arm Viscometer Holder, Round
• K23384 Cannon-Ubbelohde Semi-Micro Viscometer Holder, Round
• K23387 BS/IP/RF U-Tube Viscometer Holder, Round
• K23462 Digital Stopwatch
• 355-001-001 White Mineral Oil, 1 Gallon
• 355-001-003 White Mineral Oil, 5 Gallon
• 250-000-120C ASTM 120C Thermometer, 40 °C Test Temperature
• 250-000-121C ASTM 121C Thermometer, 100 °C Test Temperature
