Spesifikasi K13260 Portable Automated Colorimeter
Alat Laboratorium Umum
K13260 Portable Automated Colorimeter
• Measures the 4 most important color scales used for liquid chemicals, resins, oils, fuels, and fats for liquid color measurement
• Touch Screen TFT-Display
• Compact housing suitable for both field and laboratory use
• Modern user interface with sample and user ID entry in 16 languages
• Automatic cuvette recognition
• Data memory for up to 200 measurements
• Automatic Zero Calibration Program
• Reference Beam Technology
• Password Protection, GLP documentation
• USB-A port for printer, keyboard or memory stick
• USB-B port for PC connection
|

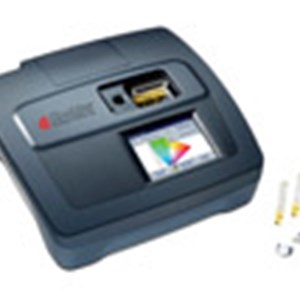

Click on the image to view a larger photo of the instrument. |
| |
High performance, microprocessor controlled photometer combines easy operation with highly accurate results. Featuring a complete set of quality
control action items that includes a menu-driven handling procedure for the automatic pass/fail specification check based on a certified test filter, a reminder function for re-calibration and an inspection time interval reminder. Capable of performing exact colorimetric evaluations in conformity with
several ISO, DIN and ASTM standards with just a single measurement. Automatic calibration memory, special cuvette recognition logic and the spectral measurement method yield precise and reliable color measurements necessary for high intra and inter instrument reproducibility. An optional Battery power pack allows for use in the field for days without a mains connection.
Color measurement methods
• Hazen Color, APHA Color, Pt/Co Color (ASTM D1209, ISO 6271)
• Gardner Color (ASTM D1544, ISO 4630)
• Iodine Color (DIN 6162)
• Saybolt Color (ASTM D156, NF M 07-003)
Specifications
Conforms to the specifications of:
ASTM D156, D1209, D1544, D6166; 4630, 6271; DIN 6162; NF M 07-003
Wavelength Range: 400 to 700nm / 20nm
Photometric accuracy: 5 mAbs at 0.0 to 0.5 Abs 1% at 0.50 to 2.0 Abs
Photometric linearity: <0.5% to 2 Abs
≤ 1% at > 2 Abs with neutral glass at 546 nm
Stray light: > 3.0 Abs. at 500nm with OG570/3
Light Source: Gas-filled Tungsten bulb (visible spec)
Included Accessories
Univeral power supply 100-240V, 50-60Hz, with exchangeable plug adapters for EU, GB, US, China
Dust Cover
User Manual
Dimensions lxwxh,in.(cm)
12.9x8.6x5.3 (33x22x13.5)
Net Weight: 8.95 lbs (4.06kg)
Shipping Information
Shipping Weight: 13 lbs (5.9kg)
Dimensions: 18x15x11in. (45.7x38.1x27.9cm)
Electrical Requirements
100-240V 50-60Hz
|
 |
Ordering Information |
| |
|
Catalog
Number
|
Product Description
|
| K13260 |
Portable Automatic Colorimeter
|
|
|
Accessories |
| |
|
Catalog
Number
|
Product Description
|
|
K13551
|
Starter Kit
Consists of Addista Color Standards; 50 x 10 Rectangular Cuvettes, Pk/10; Cuvette Set, 10 x 11mm round glass cuvettes
|
|
K13555
|
Test filter set for stray light, absorbance and wavelength check |
| K13253 |
Certified Testing solution set “Addista-Color”
|
| K13351 |
Round Cuvettes 11mm, glass, disposable, pk/500
|
| K13353 |
Rectangular Cuvette 50 x 10 mm, plastic, disposable, pk/50
|
| K13349 |
Rectangular Cuvette 50 x 10 mm with caps, plastic,
disposable, pk/10
|
| K13250-1 |
Rectangular cuvette 50 x 10 mm, glass, pk/1
|
| K13500-3 |
Rectangular cuvette 10 x 10 mm, glass, pk/3
|
| K13554 |
USB-Keyboard (keyboard layout:US)
|
| K13552 |
USB-Barcode Scanner (hand-held scanner)
|
| K13556 |
USB-Memory Stick
|
| K13557 |
Lithium-Ion Battery, 11V, 4400mAh, 300g
|
| K13558 |
Replacement Tungsten bulb 6V, 10W
|
| K13559 |
PC-Software Datatrans, incl. USB cable
|
| |
Please use the K13250-1 Rectangular cuvette 50 x 10, glass, pk/1 or K13500-3 Rectangular cuvette 10 x 10, glass, pk/3 when testing hydrocarbons for color measurements. The disposable polycarbonate cuvettes are made for aqueous samples.
|
|
Harga K13260 Portable Automated Colorimeter
: CALL
