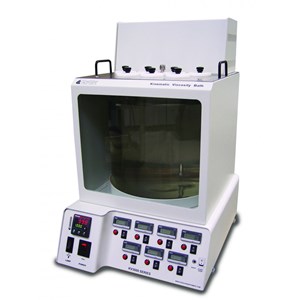

Spesifikasi HKV3000 High Temperature Kinematic Viscosity Bath with Integrated Digital Timing

Alat Laboratorium Umum

K23800 High tempererature kinematic viscosity bath 12'',115v 60hz

K23490 High tempererature kinematic viscosity bath 12'',220-240v 50/60hz

Kinematic viscosity is of primary importance in the design and selection of a wide range of petroleum products. Calibrated capillary viscometers are used to measure flow under gravity or vacuum at precisely controlled temperatures.

• Microprocessor temperature control between ambient and 232 °C (450 °F)
• Integrated digital timing for easy measurement of sample efflux times
• Permits entry of viscometer constants for automatic calculation and display in viscosity units or seconds
• Dual digital displays show setpoint and actual bath temperature
• Selectable temperature scale - Fahrenheit or Celsius
• Conforms to ASTM D445, D2170 and related specifications
• Port Cover, Delrin® (7)
• Thermometer Holder

  Conforms to the specifications of:

  ASTM D445, D2170, D6074, D6158; IP 71, 319; ISO 3104; DIN 51550; FTM 791-305; NF T 60-100

  Temperature Control Range: Ambient to 150°C (302°F); sub-ambient to 10°C with external cooling

  Display: 0.1 °C / 0.1 °F resolution, calibrate to 0.01 °C / 0.01 °F
  Control accuracy and uniformity: Exceeds ASTM requirements throughout the operating range

  Timing: Integrated timing function within Touch Screen Control Panel  displayed to 0.1 seconds and accurate within 0.01%

  Communication: RS232, RS485 port

  Viscometer ports: Seven round 2" (51mm) ports

  Bath Medium: Water or suitable heat transfer fluid

  Bath Capacity:



  12": 5.8 gal (22L)
  18": 8.9 gal (33.7L)115V 60Hz, Single Phase, 12.7A
  220-240V 50/60Hz, Single Phase, 7.3A

  lxwxh,in.(cm): 20 ¼ x 15 ¼ x 24 ½ (51x39x62)

  Net Weight: 84 lbs (38.1kg)

• 378-025-C01 thru 378-700-C01 Cannon®-Fenske Viscometer Tubes, Size 25 thru 700
• 378-025-C02 thru 378-700-C02 Cannon®-Fenske Opaque Reverse Flow Viscometer Tubes, Size 25 thru 700
• 378-000-C03 thru 378-005-C03 Ubbelohde Viscometer Tubes, Size 0 thru 5
• K23700-SFW-A Kinematic Viscosity Software
• K22090 Withdrawal Bulb
• K23311 Rubber Stopper for Viscometer Tube, pk/12
• K23381-HT High Temperature Viscometer Holder, Cannon®- Fenske Routine, Cannon®-Fenske Opaque, Cannon®- Manning Semi-Micro
• K23382-HT High Temperature Viscometer Holder, Ubbelohde
• 355-001-001 White Mineral Oil, 1 Gallon
• 355-001-003 White Mineral Oil, 5 Gallon
• 250-000-120C ASTM 120C Thermometer, 40 °C Test Temperature
• 250-000-121C ASTM 121C Thermometer, 100 °C Test Temperature
