Spesifikasi High Temperature Dropping Point Apparatus

Alat Laboratorium Umum

K19400 Hight temperature droping point apparatus,115v 60hz

K19410 Hight temperature droping point apparatus,220-240v 50/60hz

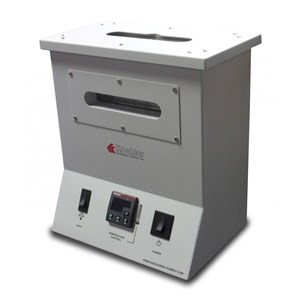

The ASTM D2265 dropping point test permits higher temperatures than the ASTM D566 method and uses a different heating procedure: the test cell is inserted in an aluminum block oven maintained at a constant temperature that is higher than the expected dropping point of the sample. The sample temperature then rises to the dropping point without operator control.

• Conforms to ASTM D2265 and D4950 specifications
• Six-sample testing capability
• Microprocessor programmable high accuracy temperature controlTests dropping points of lubricating greases at temperatures of up to 400°C (752°F). Includes thermostatically controlled aluminum block oven and six complete dropping point assemblies. Six-place oven has large viewing ports with fluorescent backlighting for excellent visibility. Microprocessor PID control provides quick temperature stabilization without overshoot and the bath is protected by an overtemperature control circuit that interrupts power should block temperature exceed a programmed cut-off point. Dual LED displays provide actual and setpoint temperature values in °C/°F format. Communications software (RS232, etc.), ramp-to-set and other enhanced features are available as extra cost options. Contact your Koehler representative for information. Microprocessor temperature control with digital readout and overtemperature safety cut-off maintains block temperature with ±0.5°C stability. Insulated cabinet has a chemical resistant polyurethane finish.
• Dropping Point Assemblies (6) consisting of: test tube, grease cup, thermometer clamp, upper and lower bushings and bushing support ring
• Thermometer Depth Gauge
• Polished metal Rod
• Cup Support

  Conforms to the specifications of:

  ASTM D2265, ASTM D4950

  Maximum Temperature: 400°C (752°F)

  Control Stability: ±0.5°C (±1°F)115V 60Hz, Single Phase, 6.5A
  220-240V 50/60Hz, Single Phase, 3.4Av

  Shipping Weight: 32 lbs (14.5 kg)

  Dimensions: 24x20x18 in. (61.0x50.8x45.7 cm)v
