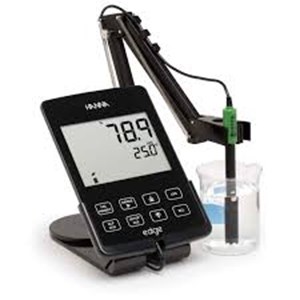

Cutting-edge design, capacitive touch keypad and an intuitive user interface are just some of the attributes that make this meter stand out.
DO is measured through a unique digital electrode. Connected via an easy plug-in 3.5mm connector, this smart electrode enables Edge to automatically recognise and store sensor type, ID and calibration information.
Programmed for basic and advanced modes, Edge offers simplified screen features for routine measurements or detailed data display. It warns users if the electrode is not clean or if buffers are contaminated during calibration using the exclusive Hanna CAL-CHECK feature.
Key features
- capacitive touch keypad
- large 140mm LCD display with clear full text readout
- digital smart electrode enable edge to automatically recognise and store sensor type, ID and calibration information
- range: 0.00 to 45.00 ppm; 0.0.0 to 300.0% saturation
- resolution: 0.01 ppm; 0.1 % saturation
- accuracy: +/- 1.5% of reading
- slim, lightweight design means Edge can be hand-held, wall-mounted or used as a bench meter
Specifications
| Range - DO | 0.00 to 45.00 ppm; 0.0 to 300.0% saturation | |
| Resolution - DO | 0.01 ppm; 0.1% saturation | |
| Accuracy - DO | ±1.5 % of reading | |
| DO Calibration | one or two points at 0% (HI-7040 solution) and 100% (in air) | |
| Temperature Compensation | Automatic, 0 to 50°C (-4 to 248°F) | |
| Electrode | HI 764080 dissolved oxygen electrode(included) | |
| Environment | 0 to 50°C (32 to 122°F); RH max 95% | |
| Dimensions | 202 x 140 x 12.7 mm | |
| Weight | 250 g |
