PH Meter
Details
Manual calibration is performed at one or two points by adjusting the trimmers on the front panel. Capable of measuring pH/mV and °C, this meter are great for field work, providing one meter for multiple uses. This instrument is ideal for applications that require a custom calibration point. Manual calibration can be extremely useful in order to achieve better accuracy.
This meter can also be used for ORP measurements with the optional probes below: HI3618D or HI4619D
pH
| pH Range |
0.00 to 14.00 pH |
| pH Resolution |
0.01 pH |
| pH Accuracy (@25ºC/77ºF) |
±0.01 pH |
| pH Calibration |
manual, two-point, via trimmers |
| pH Temperature Compensation |
automatic, 0 to 70°C (32 to 158 °F) |
| pH Input impedence |
1012 Ohm |
mV
| mV Range |
±1999 mV |
| mV Resolution |
1 mV |
| mV Accuracy (@25ºC/77ºF) |
±1 mV |
Meter Temperature
| Temperature Range |
0.0 to 100.0°C |
| Temperature Resolution |
0.1°C |
| Temperature Accuracy |
±0.4°C |
General Meter
| pH Electrode |

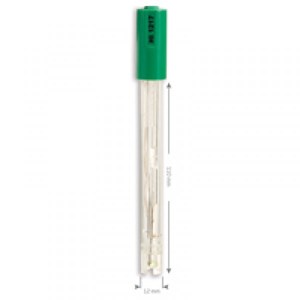

HI1217D PEI body, preamplified pH electrode with internal temperature sensor, DIN connector and 1 m cable (included) |
| Slope/Offset Calibration |
from 80 to 110%/±1 pH |
| Battery Type / Life |
9V / approximately 100 hours of continuous use |
| Environment |
0 to 50°C (32 to 122°F); RH max 100% |
| Dimensions |
145 x 80 x 36 mm (5.7 x 3.1 x 1.4’’) |
| Weight |
230 g (8.1 oz.) |
| Ordering Information |
HI8314 is supplied with HI 1217D pH electrode, HI70004 pH 4.01 buffer solution sachet, HI70007 pH 7.01 buffer solution sachet, HI700601 electrode cleaning solution sachets (2), calibration screwdriver, battery, protec |
