Spesifikasi HANNA HI-2002 pH Meter

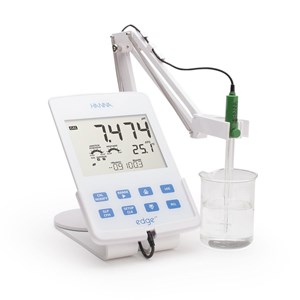

  HANNA HI-2002  pH Meter

Alat Laboratorium Umum

edge® pH is dedicated to testing pH. Using Hanna's latest innovation in technology and design, edge® can be adapted to suit your working method.

Select from hand held, wall mount or bench top - or switch between them all. edge® is happy any which way. Simply plug in the electrode, then play.

Measurement is simpler, quicker and more accurate than ever.

Results are fast and reliable. Combining high precision technology with the user-friendly dimensions and format of a small digital tablet, edge® is breaking new ground in electrochemistry.

This is a must-have meter for your laboratory.

Cutting-edge design, capacitive touch keypad and an intuitive user interface are just a few of the great attributes that make edge® stand out as the world's first Hybrid meter on the market.

Key features

pH, mV pH and ORP reading modes
capacitive touch keys
large 140mm LCD display with clear full text readout
GLP data - records date, time, offset, and cell constant value (K)
Digital smart electrodes enable edge to automatically recognise and store sensor type, ID and calibration information
Programmed for basic and advanced modes
Log-on demand and interval logging
PC interface via micro USB
Data download onto USB stick via standard USB

pH Range basic mode: -2.00 to 16.00 pH; standard mode: -2.000 to 16.000 pH
Resolution basic mode: 0.01 pH; standard mode: 0.001 pH
Accuracy (@25°C) basic mode: ±0.01 pH; standard mode: ±0.002 pH
Calibration basic mode: automatic, up to three points calibration, 5 standard buffers available; standard mode: automatic, up to five point calibration, 7 standard buffers available and two custom buffers
Temperature Compensation automatic, -5.0 to 100.0°C (using integral temperature sensor)
Electrode Diagnostics standard mode: probe condition, response time and out of calibration range
mV pH Range ±1000 mV
Resolution 0.1 mV
Accuracy (@25°C) ±0.2 mV
ORP Range ±2000 mV
Resolution 0.1 mV
Accuracy (@25°C) ±0.2 mV
Temperature Range -20.0 to 120.0°C
Resolution 0.1°C
Accuracy ±0.5°C
Additional Specifications Probe HI-11310 digital glass body pH electrode with 3.5mm connector and 1m cable
Logging up to 1000 (400 for basic mode) records organised in: manual log-on demand (max. 200 logs), manual log-on-stability (max. 200 logs), interval logging (max. 600 samples; 100 lots)
Connectivity 1 USB port for storage; 1 micro USB port for charging and PC connectivity
Environment 0 to 50°C; RH max 95% non-condensing
Power Supply 5 VDC adapter (included)
Dimensions 2020 x 140 x 12 mm
Weight 250 g
