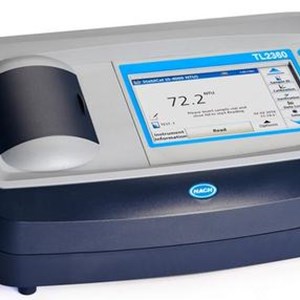

Spesifikasi HACH TL2360
Alat Uji Kualitas Air
Highly sophisticated, nephelometric turbidimeters for laboratory analysis of suspended particles in liquids.
- Regulatory Method-specific models: TL2300/TL2350: EPA Method 180.1, TL2310/TL2360: ISO7027, DIN EN27027, DIN 38404, NFT9033
- Intuitive user interface with large, full colour touchscreen display
- Optical cell air purge system, requiring a source of dry nitrogen or instrument-quality air
- Instruments display result only after sample stability is detected
General Specifications:
| Model | TL2360 | |
| Method | ISO/DIN | |
| Units | FNU, FAU, NTU, Abs., %T, mg/l | |
| Ranges |
NTU
FNU
EBC
FAU Abs. %T mg/l |
0 to 10000 (ratio on) 0 to 40 (ratio off) 0 to 1000 (ratio on) 0 to 40 (ratio off) 0 to 2450 (ratio on) 0 to 9.8 (ratio off) 20 to 1000 0 to 2.00 1.0 to 100.0 0 to 100 |
| Light source | LED at 860nm | |
| Sample size |
95 x 25mm round sample cell, minimum 20ml volume |
|
| Output |
2 x USB ports for flash drive or external printer |
|
| Datalogging | 2 x USB ports for flash drive or external printer | |
| Dimensions H x W x D | mm | 153 x 395 x 305 |
| Weight | kg | 3 |
Supplied with silicone oil, oiling cloth, filter assembly, 6 x 95 x 25mm (1”) cells with caps, Gelex secondary turbidity standards kit, Stablcal calibration kit, dust cover and power supply for 100-240V supplies.
