Spesifikasi FURNACE

Furnace Heating Element

Description

Furnaces

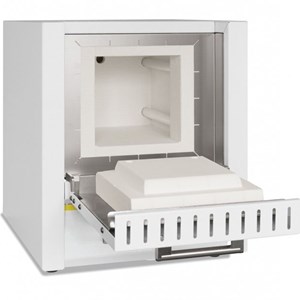

Muffle Furnaces Basic Models

With their unbeatable price/performance ratio, these compact muffle furnaces are perfect for many applications in the laboratory. Quality features like the dual shell furnace housing of rust-free stainless steel, their compact, lightweight constructions, or the heating elements encased in quartz glass tubes make these models reliable partners for your application.

- Tmax 1100 °C, working temperature 1050 °C

- Heating from two sides from heating elements in quartz glass tubes

- Maintenance-friendly replacement of heating elements and insulation

- Insulation made of non-classified fiber material

- Housing made of sheets of textured stainless steel

- Dual shell housing for low external temperatures and high stability

- Flap door which can also be used as a work platform

- Exhaust air outlet in rear wall

- Solid state relays provide for low-noise operation

- Compact dimensions and light weight

- Controller mounted under the door to save space

- Defined application within the constraints of the operating instructions

Additional equipment :

- Chimney, chimney with fan or catalytic converter (not for L 1)

- Over-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and load

- Protective gas connection to purge with non-flammable protective or reaction gases

- Manual gas supply system
