Spesifikasi Fluke Networks 19800003TS19
Alat Ukur Kuat Arus

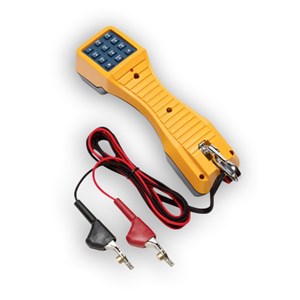

The Fluke Networks TS19 Test Set combines all the essential test set features at an affordable price. This test set was specifically designed for in-house telecom technicians. Its high impedance monitor prevents accidental disruption of service from clipping onto a data line while in monitor mode, thus ensuring the integrity of critical data lines. Features such as tone (DTMF) or pulse operation, talk/monitor capabilities, polarity test button and last number redial make this test set the perfect combination of features and price.
| Electrical |
| Loop Limit |
2.4 kΩmaximum at 48 VDC (nominal 15 mA minimum loopcurrent) |
| DC Resistance (Talk Mode) |
150 Ωtypical at 80 mA current |
| AC Impedance (Monitor Mode) |
Low impedance (Ring position) 600 Ωat 1 KHz typical
High impedance (HI Z position) 100 kΩminimum at 1 KHz |
| Rotary Dial Output |
10 pps .5 pps |
| Pulsing Rate |
60 % ± 2 % |
| Percent Break |
800 ms typical |
| Interdigit Interval Leakage During Break |
> 50 kΩ |
| DTMF Output |
±1 % maximum |
| Tone Frequency Error Level per Tone Pair |
dBm maximum, - dBm minimum |
| High versus Low Tone Difference |
4 dB maximum |
| |
|
| Physical |
| Length |
8.75 in (22.2 cm) |
| Width |
2.375 in (6.03 cm) |
| Height |
3.375 in (8.57 cm) |
| Weight |
10.8 oz (.307 kg) maximum |
| Environmental Temperature |
Operating: -5 °C to °C
Storage: -40 °C to °C |
| Drop |
1 meter, 4 times |
| Altitude |
To 3,000 meters (10,000 feet) maximum |
| Relative Humidity |
10 %to 80 % (non-condensing) |
| Regulatory Standards Used |
47 CFR Part 15, Subpart B
ICES-003 Issue 3
AS/NZS 3548
EMC Directive 89/336/EEC, EN 55022:98, EN 61326:97, A1:98 Annex C, EN 61000-4-2, EN 61000-4-3
LV Directive 73/23/EEC, EN 610010.1 (1993) |
| Certifications and Compliance |
Conformité Européenne. Conforms to relevant European Union directives.
CAN/CSA-C22.2 No. 60950-1-03
CAN/CSA-C22.2 No. 1010.1-92 CSA-C22.2 No. 1010.1B-97, UL/ANSI 3111-1 |
|
