Spesifikasi Fluke 93

Alat Ukur Kuat Arus

Description

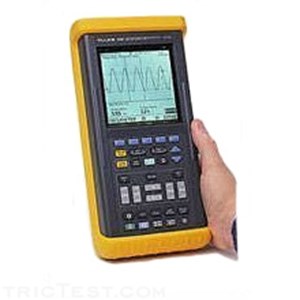

 The Fluke 93  Scopemeter is the benchmark tester for everything that came after it. A two channel oscilloscope and built in multimeter provide a wealth of useful troubleshooting information. Powerful, portable and accuracy in a small hand held unit. The Fluke 97 ScopeMeter combines the capabilities of a dual-trace, digital storage oscilloscope with the versatility of a digital multimeter. This combination allows you to analyze and compare complex waveforms, read voltage levels, or simply measure resistance.

Feature

• Frequency Range/ Bandwith 50 MHz
• Max. Vertical Sensitivity 100 V/div
• Min. Vertical Sensitivity 1 mV/div
• Number of Channels 2 CH
• Record Length 512 pts.
• Sample Rate 25 MSa/s
• Type (D/A) Digital Hand Held

• Bandwidth: 50 MHz Dual Channel
• Sample Rate: 25 Megasamples/second
• Autoset: Automatically sets Voltage, Time & Trigger
• Multimeter Display: 3 2/3 Digits (> 3000 Counts)
• True RMS Volts: AC or AC+DC up to 600V (1700V Pk-Pk)
• Resistance: 30 ohm to 30 Mohm
• Diode Test: up to 2.8V
• Continuity Beeper
• Time/Division: 10 ns/div to 60 sec/div
• Volts/Division: 1 mV/div to 100 V/div

Specification

• Digital Delay or Pre-Trigger: By Number of Cycles, Events, Time or Zoom Mode
• Special Multimeter Modes: Min Max Average Record with Time Stamp, Relative (zero), dBm, dBV, dBW, Audio Watts, %Scale, Frequency, %Duty Cycle, Smoothing¿, Change alert¿
• Oscilloscope Cursors: 15 Measurements, Display 5 Simultaneously
• Glitch Capture: >40 ns
• Waveform Processing: Average, Min Max, Record, Variable Persistence
• Waveform Memory: Store & Recall 8 Waveforms
• Set-up Memory: Store & Recall 10 Front Panel Set-Ups
• Waveform Mathematics: Add, Subtract, Multiply, Invert, Filter or Integrate Waveforms
• Signal Generator Output: Sine wave or Square wave
• Component Tester Output: voltage or current ramp
• Size: 2.4″ H x 5.1″ W x 10.2″ L
• Weight: 3.3 lbs
