Spesifikasi Fluke 714 B

Alat Ukur Kuat Arus

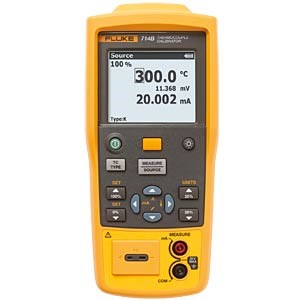

FLUKE 714 B

• Product Description
• Technical information

• General
• • Type
  • Calibrator
  • Design
  • For thermocouplers
  • Colour
  • Yellow/grey
  • Model
  • 714 B
  • Approval
  • IEC 60529

• Implementation
• • Protection class
  • IP52

• Measures
• • Length
  • 188.5 mm
  • Width
  • 52.5 mm
  • Height
  • 84 mm

• Packaging
• • Packaging
  • Individual packaging

For technicians in the field of temperature calibration wanting an extremely precise and easy-to-use temperature calibrator for resistance thermometers, the Fluke 714B is the ideal tester.

Features and functions:

• Can measure and simulate 17 different thermocouple types and millivolt voltages.
• Measure 4-20-mA signals with a simultaneous simulation of a temperature signal
• Hanger included
• Configurable device settings from 0% to 100% for a quick review of the 25% linearity
• Linear ramp and automatic ramp function in 25% increments based on the 0% and 100% setting
• Two inputs and backlit display for easy reading of the measurement data
• When you turn on the device, the last used settings will be retrieved automatically so that tests can be easily continued
• Specifications for calibration intervals of 1 and 2 years and factory calibration certificate included

Technical data:
Maximum allowable applied voltage: 30 V
mA measurement, DC: 0 - 24 mA, 0.001 mA, ±0.010% + 2 µA
Millivolt reading and source: -10 mV to 75 mV, 0.01 mV, ±0.015% + 10 µA
Operating temperature: -10 to 50°C
IP protection class IEC 60529: IP52
Safety: IEC 61010-1, max 30 V to earth, pollution degree 2
Power supply: 4 x 1.5 V battery type AA (LR6)
Dimensions (H x W x D): 52.5 x 84 x 188.5 mm
Weight: 515 g

Included with delivery:
Fluke 714 B, magnetic hanger, batteries, manual, test leads, factory calibration certificate


Manufacturer : FLUKE
Factory number : 4387869

Package weight : 0.89 kg
