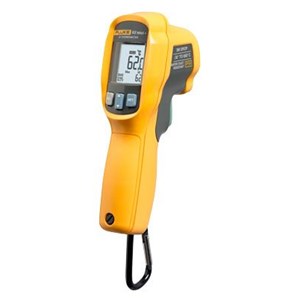

Spesifikasi Fluke 62 MAX Infrared Thermometers

Fluke 62 MAX  62 MAX
Infrared Thermometers

Alat Laboratorium Umum

Specifications
Temperature Range
Fluke 62 MAX  -30 °C to 500 °C (-22 °F to 932 °F)
Fluke 62 MAX+  -30 °C to 650 °C (-22 °F to 1202 °F)
Accuracy
Fluke 62 MAX  ±1.5 °C or ±1.5% of reading, whichever is greater
-10 °C to 0 °C: ±2.0
-30 °C to -10 °C: ±3.0
Fluke 62 MAX+  ±1.0 °C or ±1.0% of reading, whichever is greater
-10 °C to 0 °C: ±2.0
-30 °C to -10 °C: ±3.0
Response Time (95%)
Fluke 62 MAX  <500 ms (95% of reading)
Fluke 62 MAX+  <300 ms (95% of reading)
Spectral Response  8 to 14 microns
Emissivity  0.10 to 1.00
Optical Resolution
Fluke 62 MAX  10:1 (calculated at 90% energy)
Fluke 62 MAX+  12:1 (calculated at 90% energy)
Display Resolution
0.1 °C (0.2 °F)
Repeatability of Readings
Fluke 62 MAX  ±0.8% of reading or <±1.0 °C (2 °F), whichever is greater
Fluke 62 MAX+  ±0.5% of reading or <±0.5 °C (1 °F), whichever is greater
Power
AA battery
Battery Life
Fluke 62 MAX  10 hours with laser and backlight on
Fluke 62 MAX+  8 hours with laser and backlight on
Physical Specifications
Weight  255 g (8.99 oz)
Size  (175 x 85 x 75) mm (6.88 x 3.34 x 2.95) inches
Operating Temperature  0 °C to 50 °C (32 °F to 122 °F)
Storage Temperature  -20 °C to 60 °C (-4 °F to 140 °F), (without battery)
Operating Humidity  10 % to 90 % RH non-condensing at 30 °C (86 °F)
Operating Altitude  2000 meters above mean sea level
Storage Altitude  12,000 meters above mean sea level
IP Rating  IP 54 per IEC 60529
Drop Test  3 meters
Vibration and Shock  IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms
EMC  EN 61326-1:2006 EN 61326-2:2006
Standards and Agency Approval
Compliance  EN/IEC 61010-1: 2001
Laser Safety  FDA and EN 60825-1 Class II

Nama Model Keterangan
Fluke 62 MAX+ Termometer inframerah ganda, 12:1 titik
Fluke 62 MAX Termometer inframerah laser tunggal, 10:1 titik
