Spesifikasi Fluke 312
Alat Ukur Kuat Arus
Product Details

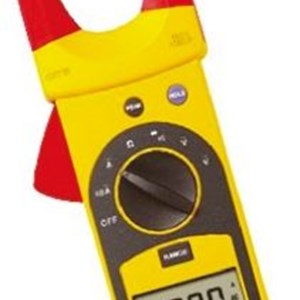

Fluke 312 Current Clamp Meter
The Fluke 312 Clamp meter is equiped with a digital display 3-3/4 digits and an analog display: Fast 42-segments.
AC amp 40 / 400 / 1000A
AC voltage 750V
Resistance 400 / 4000 ohms
Connectivity test <50 ohms
DC voltage 1000V
Diode test up to 2 V
Auto Power Off
Clamp open size: 36mm
Low battery indication
Power source: 9V battery
Standards
CE marked, EN61010 600V CAT III, 1000V CAT II, CMC
Supplied with
Carrying case, pairs of test lead, English manual
Specifications
| Attribute | Value |
|---|---|
| Absolute Maximum AC Current Measurement | 1kA ac |
| Absolute Maximum DC Current Measurement | 1kA dc |
| Absolute Maximum AC Voltage Measurement | 750V ac |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum Resistance Measurement | 4kΩ |
| Model Number | 312 |
| AC Current Measurement Resolution | 10mA ac |
| DC Current Measurement Resolution | 10mA dc |
| Clamp Meter Type | Continuity Tester, Voltage & Current Tester |
| Best AC Current Accuracy | ±1.9 % + 5 Digits |
| Best AC Voltage Accuracy | ±1.2 % + 5 Digits |
| Best DC Voltage Accuracy | ±0.75% + 2 Digits |
| Safety Category Level | CAT II, CAT III |
| AC Voltage Measurement Resolution | 0.1V ac |
| Minimum Operating Temperature | 0°C |
| Resistance Measurement Resolution | 100mΩ |
| Safety Category Voltage | 600 V, 1000 V |
| Weight | 422g |
| Safety Category | CAT II 1000 V, CAT III 600 V |
| Height | 37mm |
| Best Resistance Measurement Accuracy | ±1% + 3 Digits |
| Functions Measured | AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Resistance |
| Maximum Operating Temperature | +30°C |
| Dimensions | 254 x 66 x 37mm |
| Battery Type | 9V |
| Width | 66mm |
| True RMS | Yes |
| Power Source | Battery |
| Display Type | LCD |
| Length | 254mm |
| Battery Life | 33 h, 65 h, 100 h |
| DC Voltage Measurement Resolution | 0.1V dc |
