Product Details

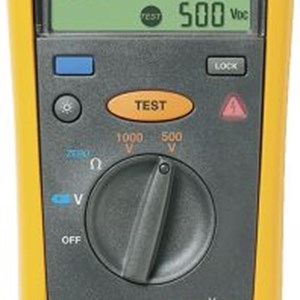

Fluke 1503 Insulation Tester
The Fluke 1503 Insulation Tester is compact, rugged, reliable, and easy to use. With its multiple test voltages, it is ideal for many troubleshooting, commissioning, and preventative maintenance applications.
With a remote probe, repetitive or hard-to-reach testing is made easy. Test leads, probes and alligator clips are also included.
Features and Benefits
• Insulation test range: MΩ to 2000 MΩ
• Insulation test voltages: 500 V, 1000 V
• Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
• Auto-discharge of capacitive voltage for added user protection
• AC/DC voltage: 0.1 V to 600 V
• 200 mA Continuity
• Resistance: 0.01 Ω to 20.00 kΩ
• Save battery power with auto power off
• Read measurements easily with large, backlit display
• CAT IV 600 V overvoltage category rating for added user protection
• Remote probe, test leads, probes and alligator clips included with each tester
• Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
• Four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
Specifications
| Attribute | Value |
|---|---|
| Tester Type | Insulation Resistance Tester |
| Minimum Test Voltage | 500V |
| Maximum Test Voltage | 1000V |
| Maximum Insulation Resistance Measurement | 2GΩ |
| Display Type | Graphic Display - Backlit |
| Test Current | 200mA |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +55°C |
| Power Source | Battery |
| Safety Category Level | CAT III, CAT IV |
| Safety Category Voltage | 600V |
| Safety Category | CAT III 600 V, CAT IV 600 V |
| Dimensions | 203 x 100 x 50mm |
| Model Number p | 1503 |
| Length | 203mm |
| Battery Type | AA |
| Width | 100mm |
| Weight | 550g |
| Height | 50mm |
