Spesifikasi Fluke 12
Alat Ukur Kuat Arus
Product Details

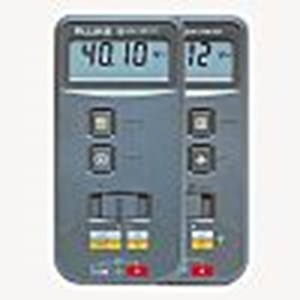

Fluke 12 Series Multimeters
Versatile multimeters combining basic features, high performance and low cost. This meters offers Fluke build quality with safety, being designed to meet IEC 1010 600V CAT. III.
4000 count digital display
Voltage measurement to 600V a.c. or d.c.
Resistance measurement to 40 mΩ
Fast continuity beeper, diode test
Sleep mode (shuts down after 45 mins).
Continuity capture symbolically displays ’opens’ and ’shorts’ as brief as 250μs
Min/Max records highest and lowest voltage readings
Elapsed time clock to time stamp the min/max readings, up to 100 hours
| Technical Specification | |
| DC Voltage Accuracy | ±0.9% |
| DC Voltage Digits | +1 D |
| DC Voltage Lowest Range | 4V |
| DC Voltage Highest Range | 600V |
| DC Voltage Lowest Resolution | 1mV |
| AC Voltage Accuracy | ±1.9% |
| AC Voltage Digits | +3 D |
| AC Voltage Lowest Range | 4V |
| AC Voltage Highest Range | 600V |
| AC Voltage Lowest Resolution | 1mV |
| AC Voltage Max Frequency | 400Hz |
| Resistance Accuracy | ±0.9% |
| Resistance Digits | +1 D |
Supplied with
manual, TL76 test leads and 9V battery installed.
Specifications
| Attribute | Value |
|---|---|
| Multimeter Type | Handheld |
| Absolute Maximum Resistance Measurement | 40MΩ |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Absolute Maximum Capacitance Measurement | 10mF |
| Functions Measured | AC Voltage, Capacitance, DC Voltage, Resistance |
| Model Number p | 12 |
| Battery Type | 9V |
| Minimum Operating Temperature | -10°C |
| Width | 70.5mm |
| Battery Life | 450 (Carbon Zinc) h, 650 (Alkaline) h |
| Safety Category Level | CAT III |
| Dimensions | 142.3 x 70.5 x 34.6mm |
| Best Capacitance Measurement Accuracy | ±1.9% + 2 Digits |
| Best Resistance Measurement Accuracy | ±1.5% + 3 Digits |
| Best AC Voltage Accuracy | ±1.9% + 3 Digits |
| Height | 34.6mm |
| Weight | 286g |
| Maximum Operating Temperature | +50°C |
| Length | 142.3mm |
| Best DC Voltage Accuracy | ±0.9% + 1 Digit |
.
