Spesifikasi FD-660

Alat Ukur Kadar Air

Description

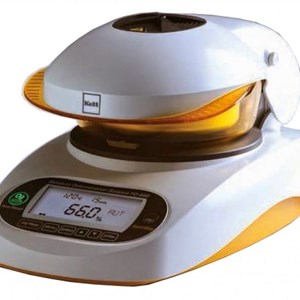

FD-660

New Infrared Moisture Determination Balance

This unit determines the moisture and solid contents of samples by heating them using infrared illumination and measuring changes in mass due to evaporation. This is referred to as the loss on drying method and is the simplest method for determining moisture content and thus mandated by many public regulations related to measurement standards.

Specifications :

- Measurement method : Detection of weight loss by heating & drying

- Sample weight : 1 - 80g (as an optional weight sampling)

- Minimum displayable units : Moisture content (solids): 0.1% or 0.01% (selectable), Weight: 0.005g

- Measurable quantities : Moisture content (wet base & dry base), weight, solid content

- Measurement range : 0 - 100% (wet base, solids) / 0 - 500% (dry base)

- Reproducibility (Standard deviation) : 0.1% with samples of 5g or more (When using standard samples and measuring settings as determined by Kett)

- Measurement Mode : Automatic mode, Timed mode (1 - 120 min.)

- Temperature setting range : 30 to 180ºC (in steps of 1ºC)

- Display : Backlit LCD screen (96 x 40mm)

- External output : RS-232C interface

- Communications : Data output from "the data logger software FDL-02" (option)

- Storage of measurement settings : 5 types

- Temperature / humidity operating range : 5 to 40ºC, 85% RH or less (no condensation)

- Heat source : Organic carbon heater (280 W x 2)

- Temperature sensor : Thermistor

- Power supply : AC100 - 120V / 220 - 240V AC (50/60Hz)

- Power consumption : Max. 600 W

- Dimensions and weight : 222 (W) x 360 (D) x 196 (H) mm, 3.2 kg

- Sample dish : Stainless steel (110 mm in diameter, 11 mm in depth)

- Accessories : 2 sample dishes, sample dish handler, wind shield, sample dish tray, spoon, 2 spare fuses, package of aluminium foil sheets (10 per package), power cord, 3P-2P plug adapter, operating manual

- Options: Printer set (includes a VZ-330 printer, a printer interface cable (VZC-14), printer paper, and an AC adapter), printer paper (10 rolls), package of aluminium foil sheets (500 sheets), RS-232C cable, Data Logger software FDL-02, Sample crusher TQ-100, Deodorizing windshield case FW-100
