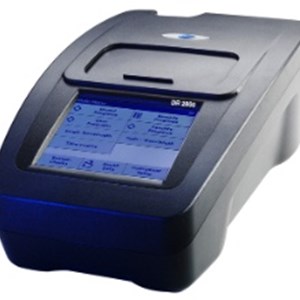

Spesifikasi DR2800
Alat Uji Kualitas Air
Accessories:Rechargeable lithium battery LZV551
Tungsten Lamp LZV565
Cuvette/ Sample cell adapter 10 mm (A) LZV583
Cuvette/ Sample cell adapter 1 inch (C) LZV584
Light Shield LZV646
Cell adapter for Pour-Thru Cell (B) LZV585
Cell adapter set (cuvette adapters A, B, and C) LZV647
Wall power supply LZV610
Protective Cover and adapter holder LZV642
Dust cover HYH019
USB-Memory Stick LZV568
USB-Interface Cable (1 m) LZV567
USB-Keyboard (keyboard layout: US) LZV582
USB-Barcode Scanner (handset scanner) LZV566
Pour-Thru Kit 5940400
Cuvette/ Sample cell set (1-inch square cuvettes/cells, matched pair in OS grade (10 mL) 2495402
HACH LANGE DataTrans (PC software for data transfer) LZY274
Certified test filter set for self-checks (6 precision glass filters with target values) LZV537
Automatic Method Recognition:N/A
Data Logger:DR2800: 500 Points
Data Storage:500 points
Display:Backlit Grayscale LCD Touch Screen
Enclosure Rating:IP42
Interfaces:1 x USB type A; 1 x USB type B (10 ft (3 m) cable, maximum)
Length:333 mm
Manual Languages:Bulgarian, Chinese, Czech, Danish,
Dutch, English, English, French,
French-Canadian, German, Greek,
Hungarian, Italian, Japanese, Korean,
Polish, Portuguese, Portuguese-Brasilian,
Romanian, Russian, Serbian, Slovenian,
Spanish, Spanish-South America, Swedish, Turkish
Max. operating humidity:80 %
Max. Storage Humidity:80 %
Operating Conditions:10 - 40 °C (50 - 104 °F); 80% relative humidity, non-condensing, maximum
Operating Mode:Transmittance (%), Absorbance, and Concentration
Optical System:Reference beam, spectral
Photometric Accuracy:5 mAbs @ 0.0 - 0.5 Abs
Photometric Accuracy 2:1 % at 0.50 - 2.0 Abs
Photometric Linearity:< 0.5 % up to 2 Abs
Photometric Linearity 2:≤ 1 % at> 2 Abs
Photometric Measuring Range:± 3 Abs in the wavelength range 340 - 900 nm
Power requirements (Hz):50/60 Hz
Power requirements (Voltage):110 - 240 V AC
Power Supply:Line/Battery (optional)
Preprogrammed Methods:DR 2800: > 240 Pre-programmed Water Analysis Methods
Sample cell compatibility:1-in. square; 1-in. round; 1 cm square; 5x1 cm rectangular; 13 mm round; 16 mm round; multipath 1-in./1 cm; Pour-Thru with 1-in./1 cm pathlengths; AccuVac Ampules
Sample Cell Compatibility:1-in. square; 1-in. round; 1 cm square; 5x1 cm rectangular; 13 mm round; 16 mm round; multipath 1-in./1 cm; Pour-Thru with 1-in./1 cm pathlengths; AccuVac Ampules
Storage conditions:-40 °C to 60 °C ; 80% relative humidity
Stray Light:< 0.2 %T at 340 nm with KV450/3; <0.1 %T at 340 nm with NaNO2
User Interface Languages:Chinese, English, French, Japanese, Korean, Brazilian Portuguese, Spanish (Please contact your Hach representative for availability of additional languages.)
User Programs:DR 2800: 50
Warranty:12 months
Wavelength Accuracy:± 1.5 nm
Wavelength Calibration:Automatic
Wavelength Range:DR 2800: 340 - 900 nm
Wavelength Resolution:1 nm
Wavelength Selection:Automatic: based on selected program method
Automatic: based on barcode printed on TNTplus™ reagent vials (DR 2800 only)
Manual: in all modes excep
