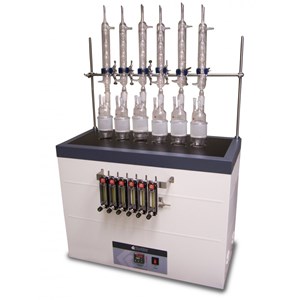

Spesifikasi Corrosiveness and Oxidation Stability Test Apparatus

Alat Laboratorium Umum

K35000 Corrosing and oxidation stabilily test aparatus FTM 791-5308 MODEL  220-240V 50/60HZ

K35100 Corrosing and oxidation stabilily test aparatus ASTM D4636 D5968 & FTMM 791-5307 Model220-240v 50/60hz

K35300 Corrosing and oxidation stabilily test aparatus IHCBT-10 model 220-240v 50/60hz

evaluates the ability of a lubricant to resist oxidation and the formation of corrosive acid compounds by subjecting a sample to accelerated oxidation conditions in a catalytic environment. The sample is maintained at elevated temperature and subjected to a controlled air flow while in the presence of a series of test specimens made of metals commonly found in actual service conditions.

• Models for ASTM, Federal and IHC test methods
• Six-sample testing capability
• Solid aluminum block design
• Microprocessor temperature control with digital display and overtemperature protectionConstant temperature block baths for corrosivity and oxidation stability determinations on hydraulic oils, aircraft turbine lubricants, transmission fluids and other highly refined oils. Insulated aluminum block provides safe, efficient performance at operating temperatures of up to 750°F (399°C). Microprocessor temperature control has °C/°F switchable digital setpoint and display. Operator and equipment are protected by an overtemperature control circuit which automatically interrupts power to the unit should block temperature exceed a programmed cut-off point. Communications software (RS232, etc.), ramp-to-set and other enhanced features are available as extra cost options. Contact your Koehler representative for information. Air flow is controlled at the specified rate by six individually adjustable flowmeters mounted on a common manifold. Includes inlet valve and outlet fitting for condenser water supply and support rack for glassware.

  Conforms to the specifications of: A

  STM D4636, D5968, D6594; FTM 791-5307,
