Spesifikasi Constant Temperature Circulating Baths
Alat Laboratorium Umum
| K33062 Circulating heating bath,standart 6 L (1,6 gal) 120v 50/60hz |
| K33063 Circulating heating bath,standart 6 L (1,6 gal) 240v 50/60hz |
| K33064 Circulating heating bath,programmable 6 L (1,6 gal) 120v 50/60hz |
| K33065 Circulating heating bath,programmable 6 L (1,6 gal) 240v 50/60hz |
| K33066 Circulating heating bath,standart 13 L (3.4 gal) 120v 50/60hz |
| K33067 Circulating heating bath,standart 13 L (3.4 gal) 240v 50/60hz |
| K33068 Circulating heating bath,programmable 13 L (3.4 gal) 120v 50/60hz |
| K33069 Circulating heating bath,programmable13 L (3.4 gal) 120v 50/60hz |
| K33070 Circulating heating bath,programmable 28 L (7.3 gal) 120v 50/60hz |
| K33071 Circulating heating bath,programmable 28 L (7.3 gal) 240v 50/60hz |
| K33072 Circulating heating bath,programmable 28 L (7.3 gal) 120v 50/60hz |
| K33073 Circulating heating bath,programmable 28 L (7.3 gal) 2400v 50/60hz |
- Above Ambient Temperature Control
- Available in Three Different Capacities: 6, 13, and 28 Liter
- Large Reservoir Opening
- Microprocessor temperature control with °C/°F digital temperature set and display
- Adjustable Over-Temperature protection and Low-Liquid Cutoff

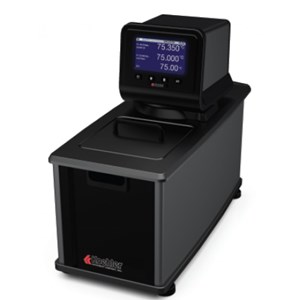

Programmable Model - Constant temperature circulating bath provides precise temperature control stability of ±0.01°C and features time/temperature programming, remote probe capability, and a variable speed pressure/suction (duplex) pump. An RS232 interface and PC programming software are standard while LabView™ drivers and Excel® macros provide even greater programming and data logging conveinience. A full graphic LCD display and multi-language help menus simplify operation and set-up.
Standard Model - Economical constant temperature circulating bath model. Microprocessor temperature control ranges from 5°C to 150°C with ±0.05°C stability. This model features a bright set-and-read LED display with a readout accuracy of ±0.5°C, three user-defined set point buttons, and a 2-speed pressure (simplex) pump suitable for closed loop applications.Temperature Range:
K33064, K33065: +5°C to 200°C
All Other Models: +5°C to 150°CTemperature Stability:
Programmable Model: ±0.01°C
Standard Model: ±0.05°CReadout Accuracy:
Programmable Model: ±0.25°C
Standard Model: ±0.5°CTemperature Readout: °C or °F
Pressure Flow Rate:
Programmable Model: 30 lpm max. (60 Hz); 22 lpm max. (50 Hz)
Standard Model: 2-speed, 9 or 15 lpmSuction Flow Rate:
Programmable Model: 22 lpm max. (60 Hz); 15 lpm max. (50 Hz)
Standard Model: N/AHeater:
Programmable Model: 1100 Watts (60 Hz); 2200 Watts (50 Hz)
Standard Model: 1100 Watts (60 Hz); 1600 Watts (50 Hz)K33062/ K33063: 14.25x8.25x8.14 in (37.5x21x35.6 cm)
K33064/ K33065: 14.25x8.25x8.14 in (37.5x21x35.6 cm)
K33066/K33067: 15.5x10.88x14.75 in (39.4x27.6x37.5 cm)
K33068/K33069: 15.5x10.88x14.75 in (39.4x27.6x37.5 cm)
K33070/K33071: 22.75x13.19x14.75 in (55.8x33.5x37.5 cm)
K33072/K33073: 22.75x13.19x14.75 in (55.8x33.5x37.5 cm)Net Weight: 18 lbs (8.2 kg)
Shipping Weight: 22 lbs (10.0 kg)
Dimensions: 20x12x19 in. (50.8x30.5x48.3 cm)
