Spesifikasi Cleveland Open Cup Flash Point Tester
Alat Laboratorium Umum
k13902 Cleveland oven cup flash point tester 115 v 60 hz
k13992 Cleveland oven cup flash point tester 220-240v 50/60hz
For flash and fire points of all petroleum products, except fuel oils and those having an open cup flash below 79°C (175°F).
- Conforms to ASTM D92 and related specifications

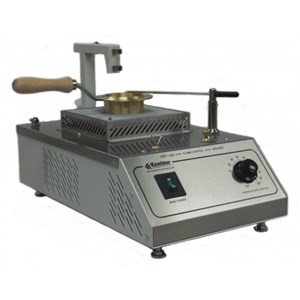

- For flash points above 79°C (175°F)Determines flash and fire points by the Cleveland Open- Cup method. Consists of test flame applicator, brass test cup, thermometer support, heating plate and electric heater. Applicator is precisely aligned per specifications and pivots for test flame application at specified temperature intervals. Hinged thermometer support raises to facilitate placement and removal of test cup. Adjust flame size using built-in needle valve and comparison bead.
Equipped with a 1000W nickel-chromium heater with stepless variable heat control for accurate repeat setting of temperature rate of rise per specifications. - Brass Test CupConforms to the specifications of: ASTM D92; D6074, D6158; AASHTO T48; ANS Z- 11.6; IP 36; ISO 2592; DIN 51376; FTM 791-1103, FTM 141-4294Conforms to the specifications of: ASTM D92; D6074, D6158; AASHTO T48; ANS Z- 11.6; IP 36; ISO 2592; DIN 51376; FTM 791-1103, FTM 141-4294115V 60Hz
220-240V 50/60Hz, Single Phase, 3.4Awxdxh in.(cm): 10 x 17.5 x 11.5 (25.4 x 44.5 x 29.2)
Net Weight: 17 lbs (7.7 kg)
Shipping Weight: 21 lbs (9.5 kg)
Dimensions: 20x16x16in (50.8x40.6x40.6 cm)
- 250-000-11F ASTM 11F Thermometer Range: 20 to 760°F
- 250-000-11C ASTM 11C Thermometer Range: -6 to +400°C
- K14000 Cleveland Open Flash Cup Precision machined brass with heat resistant handle
