Spesifikasi 407113
Anemometer
Description
407113

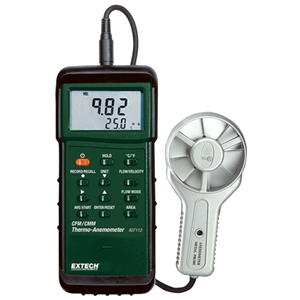

Heavy Duty CFM metal Vane Anemometer
Anemometer for measuring temperature up to 175°F (80°C) and airspeed to 6890ft/min
|
Specifications |
Range |
Resolution |
Accuracy |
|
Air Velocity |
|||
|
m/s |
0.5 to 35m/s |
0.01m/s |
±2%rdg |
|
ft/min |
100 to 6890ft/min |
1ft/min |
±2%rdg |
|
MPH |
1.1 to 78.3MPH |
0.1MPH |
±2%rdg |
|
knots |
1.0 to 68knots |
0.1knots |
±2%rdg |
|
km/h |
1.8 to 126km/h |
0.1km/h |
±2%rdg |
|
Temperature |
32 to 175°F (0 to 80°C) |
0.1° |
±1.5°F (±0.8°C) |
|
Airflow |
|||
|
CFM = ft³/min |
0 to 999,900CFM |
0.001 |
|
|
CMM = m³/min |
0 to 999,900CMM |
0.001 |
|
|
Dimensions |
7 x 2.9 x 1.3" (178 x 74 x 33mm) |
||
|
Weight |
1.6lbs (0.7kg) |
||
